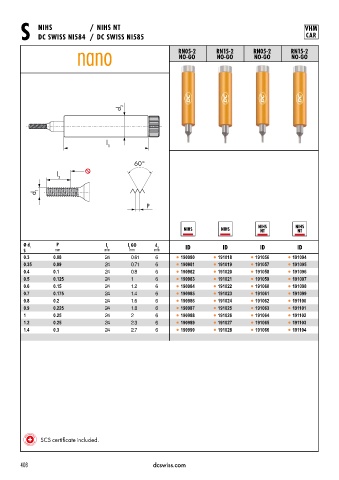

Page 411 - DC_SWISS(Catalogue_TM_ES-EN)

NIHS / NIHS NT VHM
S DC SWISS NI584 / DC SWISS NI585 CAR

RN05-2 RN15-2 RN05-2 RN15-2
NO-GO NO-GO NO-GO NO-GO

d 2

l
1

l
2

d 1

P

NIHS NIHS
NT NT

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
S mm mm mm mm
0.3 0.08 24 0.61 6 l 190980 l 191018 l 191056 l 191094
0.35 0.09 24 0.71 6 l 190981 l 191019 l 191057 l 191095
0.4 0.1 24 0.8 6 l 190982 l 191020 l 191058 l 191096
0.5 0.125 24 1 6 l 190983 l 191021 l 191059 l 191097
0.6 0.15 24 1.2 6 l 190984 l 191022 l 191060 l 191098
0.7 0.175 24 1.4 6 l 190985 l 191023 l 191061 l 191099
0.8 0.2 24 1.6 6 l 190986 l 191024 l 191062 l 191100
0.9 0.225 24 1.8 6 l 190987 l 191025 l 191063 l 191101
1 0.25 24 2 6 l 190988 l 191026 l 191064 l 191102
1.2 0.25 24 2.3 6 l 190989 l 191027 l 191065 l 191103
1.4 0.3 24 2.7 6 l 190990 l 191028 l 191066 l 191104

SCS certificate included.

408 dcswiss.com
