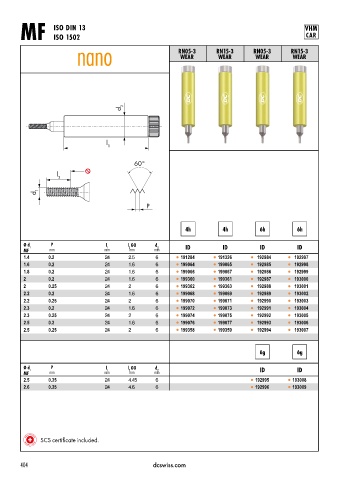

Page 407 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13 VHM
MF ISO 1502 CAR

RN05-3 RN15-3 RN05-3 RN15-3
WEAR WEAR WEAR WEAR

d 2

l
1

l
2

d 1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
MF mm mm mm mm
1.4 0.2 24 2.5 6 l 191284 l 191326 l 192984 l 192997
1.6 0.2 24 1.6 6 l 199064 l 199065 l 192985 l 192998
1.8 0.2 24 1.6 6 l 199066 l 199067 l 192986 l 192999
2 0.2 24 1.6 6 l 199360 l 199361 l 192987 l 193000
2 0.25 24 2 6 l 199362 l 199363 l 192988 l 193001
2.2 0.2 24 1.6 6 l 199068 l 199069 l 192989 l 193002
2.2 0.25 24 2 6 l 199070 l 199071 l 192990 l 193003
2.3 0.2 24 1.6 6 l 199072 l 199073 l 192991 l 193004
2.3 0.25 24 2 6 l 199074 l 199075 l 192992 l 193005
2.5 0.2 24 1.6 6 l 199076 l 199077 l 192993 l 193006
2.5 0.25 24 2 6 l 199358 l 199359 l 192994 l 193007

Ø d 1 P l 1 l GO d 2 ID ID
2
MF mm mm mm mm
2.5 0.35 24 4.45 6 l 192995 l 193008
2.6 0.35 24 4.6 6 l 192996 l 193009

SCS certificate included.

404 dcswiss.com
