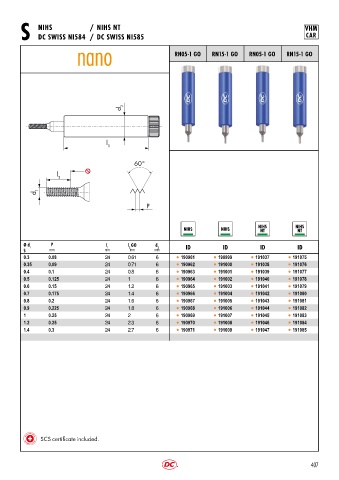

Page 410 - DC_SWISS(Catalogue_TM_ES-EN)

NIHS / NIHS NT VHM
S DC SWISS NI584 / DC SWISS NI585 CAR

RN05-1 GO RN15-1 GO RN05-1 GO RN15-1 GO

d 2

l
1

l
2

d 1

P

NIHS NIHS
NT NT

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
S mm mm mm mm
0.3 0.08 24 0.61 6 l 190961 l 190999 l 191037 l 191075
0.35 0.09 24 0.71 6 l 190962 l 191000 l 191038 l 191076
0.4 0.1 24 0.8 6 l 190963 l 191001 l 191039 l 191077
0.5 0.125 24 1 6 l 190964 l 191002 l 191040 l 191078
0.6 0.15 24 1.2 6 l 190965 l 191003 l 191041 l 191079
0.7 0.175 24 1.4 6 l 190966 l 191004 l 191042 l 191080
0.8 0.2 24 1.6 6 l 190967 l 191005 l 191043 l 191081
0.9 0.225 24 1.8 6 l 190968 l 191006 l 191044 l 191082
1 0.25 24 2 6 l 190969 l 191007 l 191045 l 191083
1.2 0.25 24 2.3 6 l 190970 l 191008 l 191046 l 191084
1.4 0.3 24 2.7 6 l 190971 l 191009 l 191047 l 191085

SCS certificate included.
