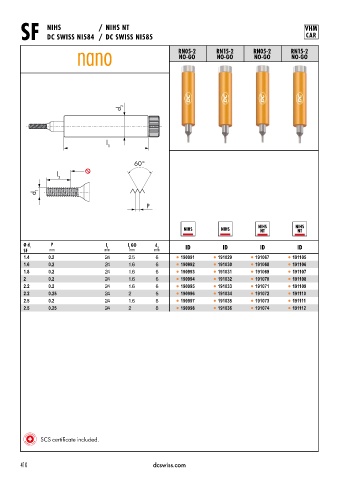

NIHS / NIHS NT VHM
SF DC SWISS NI584 / DC SWISS NI585 CAR

RN05-2 RN15-2 RN05-2 RN15-2
NO-GO NO-GO NO-GO NO-GO

d 2

l
1

l
2

d 1

P

NIHS NIHS
NT NT

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
SF mm mm mm mm
1.4 0.2 24 2.5 6 l 190991 l 191029 l 191067 l 191105
1.6 0.2 24 1.6 6 l 190992 l 191030 l 191068 l 191106
1.8 0.2 24 1.6 6 l 190993 l 191031 l 191069 l 191107
2 0.2 24 1.6 6 l 190994 l 191032 l 191070 l 191108
2.2 0.2 24 1.6 6 l 190995 l 191033 l 191071 l 191109
2.2 0.25 24 2 6 l 190996 l 191034 l 191072 l 191110
2.5 0.2 24 1.6 6 l 190997 l 191035 l 191073 l 191111
2.5 0.25 24 2 6 l 190998 l 191036 l 191074 l 191112

SCS certificate included.
