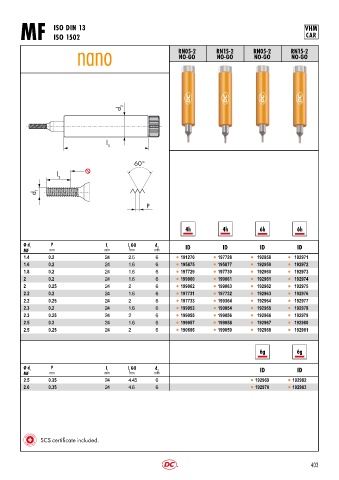

P. 406
ISO DIN 13 VHM
MF ISO 1502 CAR
RN05-2 RN15-2 RN05-2 RN15-2
NO-GO NO-GO NO-GO NO-GO
d 2
l
1
l
2
d 1
P
Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
MF mm mm mm mm
1.4 0.2 24 2.5 6 l 191270 l 197728 l 192958 l 192971
1.6 0.2 24 1.6 6 l 195875 l 195877 l 192959 l 192972
1.8 0.2 24 1.6 6 l 197729 l 197730 l 192960 l 192973
2 0.2 24 1.6 6 l 199060 l 199061 l 192961 l 192974
2 0.25 24 2 6 l 199062 l 199063 l 192962 l 192975
2.2 0.2 24 1.6 6 l 197731 l 197732 l 192963 l 192976
2.2 0.25 24 2 6 l 197733 l 199364 l 192964 l 192977
2.3 0.2 24 1.6 6 l 199053 l 199054 l 192965 l 192978
2.3 0.25 24 2 6 l 199055 l 199056 l 192966 l 192979
2.5 0.2 24 1.6 6 l 199057 l 199058 l 192967 l 192980
2.5 0.25 24 2 6 l 190686 l 199059 l 192968 l 192981
Ø d 1 P l 1 l GO d 2 ID ID
2
MF mm mm mm mm
2.5 0.35 24 4.45 6 l 192969 l 192982
2.6 0.35 24 4.6 6 l 192970 l 192983
SCS certificate included.
