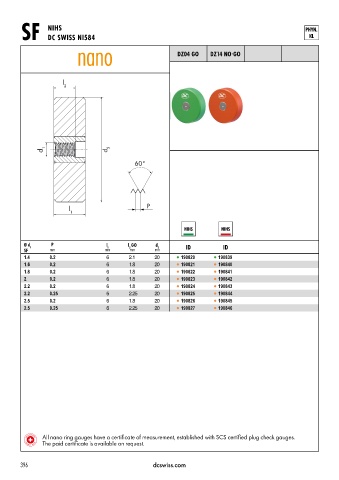

Page 399 - DC_SWISS(Catalogue_TM_ES-EN)

NIHS
SF DC SWISS NI584

DZ04 GO DZ14 NO•GO

l
2

d 1

l P
1

Ø d 1 P l 1 l GO d 2 ID ID
2
SF mm mm mm mm
1.4 0.2 6 2.1 20 l 190820 l 190839
1.6 0.2 6 1.8 20 l 190821 l 190840
1.8 0.2 6 1.8 20 l 190822 l 190841
2 0.2 6 1.8 20 l 190823 l 190842
2.2 0.2 6 1.8 20 l 190824 l 190843
2.2 0.25 6 2.25 20 l 190825 l 190844
2.5 0.2 6 1.8 20 l 190826 l 190845
2.5 0.25 6 2.25 20 l 190827 l 190846

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.

396 dcswiss.com
