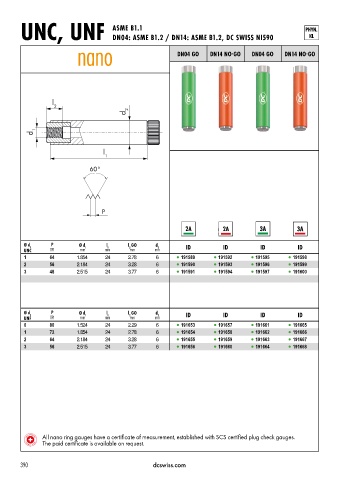

Page 393 - DC_SWISS(Catalogue_TM_ES-EN)

ASME B1.1
UNC, UNF DN04: ASME B1.2 / DN14: ASME B1.2, DC SWISS NI590

DN04 GO DN14 NO•GO DN04 GO DN14 NO•GO

l
2
d 2

d 1

l
1

P

2A

Ø d 1 P Ø d 1 l 1 l GO d 2 ID ID ID ID
2
UNC TPI mm mm mm mm
1 64 1.854 24 2.78 6 l 191589 l 191592 l 191595 l 191598
2 56 2.184 24 3.28 6 l 191590 l 191593 l 191596 l 191599
3 48 2.515 24 3.77 6 l 191591 l 191594 l 191597 l 191600

Ø d 1 P Ø d 1 l 1 l GO d 2 ID ID ID ID
2
UNF TPI mm mm mm mm
0 80 1.524 24 2.29 6 l 191653 l 191657 l 191661 l 191665
1 72 1.854 24 2.78 6 l 191654 l 191658 l 191662 l 191666
2 64 2.184 24 3.28 6 l 191655 l 191659 l 191663 l 191667
3 56 2.515 24 3.77 6 l 191656 l 191660 l 191664 l 191668

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.
