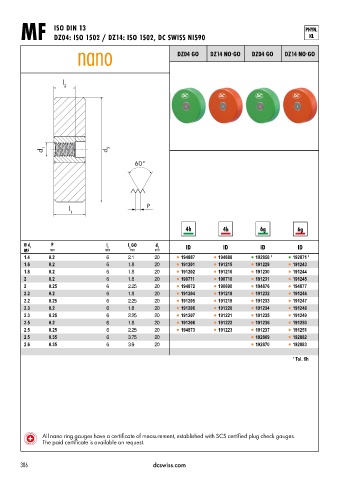

Page 389 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13
MF DZ04: ISO 1502 / DZ14: ISO 1502, DC SWISS NI590

DZ04 GO DZ14 NO•GO DZ04 GO DZ14 NO•GO

l
2

d 1

l P
1

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
MF mm mm mm mm
1.4 0.2 6 2.1 20 l 194887 l 194888 l 192858 1 l 192871 1
1.6 0.2 6 1.8 20 l 191201 l 191215 l 191229 l 191243
1.8 0.2 6 1.8 20 l 191202 l 191216 l 191230 l 191244
2 0.2 6 1.8 20 l 190711 l 190710 l 191231 l 191245
2 0.25 6 2.25 20 l 194872 l 190690 l 194876 l 194877
2.2 0.2 6 1.8 20 l 191204 l 191218 l 191232 l 191246
2.2 0.25 6 2.25 20 l 191205 l 191219 l 191233 l 191247
2.3 0.2 6 1.8 20 l 191206 l 191220 l 191234 l 191248
2.3 0.25 6 2.25 20 l 191207 l 191221 l 191235 l 191249
2.5 0.2 6 1.8 20 l 191208 l 191222 l 191236 l 191250
2.5 0.25 6 2.25 20 l 194873 l 191223 l 191237 l 191251
2.5 0.35 6 3.75 20 l 192869 l 192882
2.6 0.35 6 3.9 20 l 192870 l 192883

1 Tol. 6h

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.
