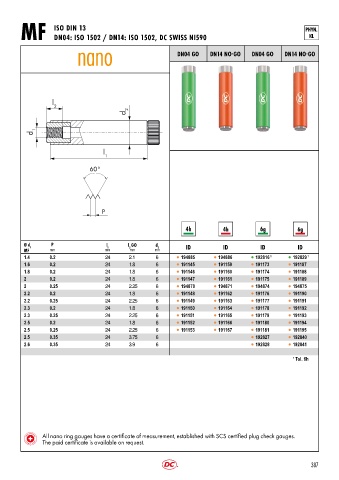

Page 390 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 13
MF DN04: ISO 1502 / DN14: ISO 1502, DC SWISS NI590

DN04 GO DN14 NO•GO DN04 GO DN14 NO•GO

l
2
d 2

d 1

l
1

P

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
MF mm mm mm mm
1.4 0.2 24 2.1 6 l 194885 l 194886 l 192816 1 l 192829 1
1.6 0.2 24 1.8 6 l 191145 l 191159 l 191173 l 191187
1.8 0.2 24 1.8 6 l 191146 l 191160 l 191174 l 191188
2 0.2 24 1.8 6 l 191147 l 191161 l 191175 l 191189
2 0.25 24 2.25 6 l 194870 l 194871 l 194874 l 194875
2.2 0.2 24 1.8 6 l 191148 l 191162 l 191176 l 191190
2.2 0.25 24 2.25 6 l 191149 l 191163 l 191177 l 191191
2.3 0.2 24 1.8 6 l 191150 l 191164 l 191178 l 191192
2.3 0.25 24 2.25 6 l 191151 l 191165 l 191179 l 191193
2.5 0.2 24 1.8 6 l 191152 l 191166 l 191180 l 191194
2.5 0.25 24 2.25 6 l 191153 l 191167 l 191181 l 191195
2.5 0.35 24 3.75 6 l 192827 l 192840
2.6 0.35 24 3.9 6 l 192828 l 192841

1 Tol. 6h

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.
