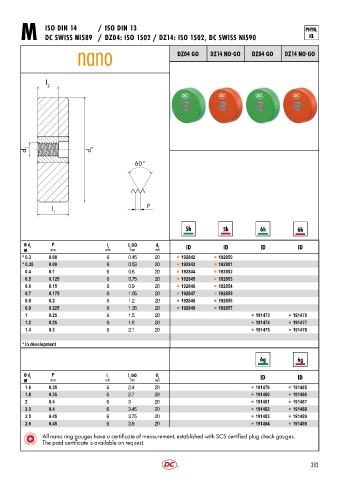

Page 386 - DC_SWISS(Catalogue_TM_ES-EN)

ISO DIN 14 / ISO DIN 13
M DC SWISS NI589 / DZ04: ISO 1502 / DZ14: ISO 1502, DC SWISS NI590

DZ04 GO DZ14 NO•GO DZ04 GO DZ14 NO•GO

l
2

d 1

l P
1

Ø d 1 P l 1 l GO d 2 ID ID ID ID
2
M mm mm mm mm
* 0.3 0.08 6 0.45 20 l 192842 l 192850
* 0.35 0.09 6 0.53 20 l 192843 l 192851
0.4 0.1 6 0.6 20 l 192844 l 192852
0.5 0.125 6 0.75 20 l 192845 l 192853
0.6 0.15 6 0.9 20 l 192846 l 192854
0.7 0.175 6 1.05 20 l 192847 l 192855
0.8 0.2 6 1.2 20 l 192848 l 192856
0.9 0.225 6 1.35 20 l 192849 l 192857
1 0.25 6 1.5 20 l 191473 l 191476
1.2 0.25 6 1.8 20 l 191474 l 191477
1.4 0.3 6 2.1 20 l 191475 l 191478

* In development

Ø d 1 P l 1 l GO d 2 ID ID
2
M mm mm mm mm
1.6 0.35 6 2.4 20 l 191479 l 191485
1.8 0.35 6 2.7 20 l 191480 l 191486
2 0.4 6 3 20 l 191481 l 191487
2.3 0.4 6 3.45 20 l 191482 l 191488
2.5 0.45 6 3.75 20 l 191483 l 191489
2.6 0.45 6 3.9 20 l 191484 l 191490

All nano ring gauges have a certificate of measurement, established with SCS certified plug check gauges.
The paid certificate is available on request.

383
