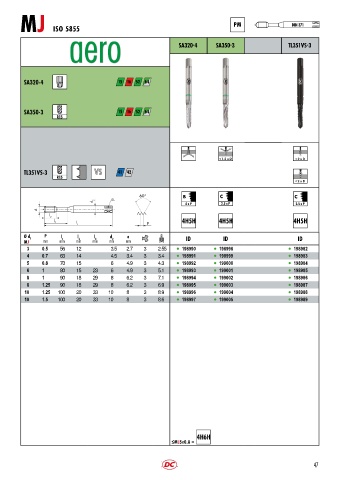

P. 50
PM DIN 371
MJ ISO 5855
SA320«4 SA350«3 TL351VS«3
SA320-4 15 16 52
SA350-3 15 16 52
R15
< 1.5 x D < 2 x D
TL351VS-3 VS 41 42
R15
< 2 x D
B C C
a
d 2
4 x P 2.5 x P 2.5 x P
d 1
l
2
l 3 l
1 P
Ø d 1 P l 1 l 2 l 3 d 2 a ID ID ID
MJ mm mm mm mm mm mm
3 0.5 56 12 3.5 2.7 3 2.55 l 198990 l 198998 l 198982
4 0.7 63 14 4.5 3.4 3 3.4 l 198991 l 198999 l 198983
5 0.8 70 15 6 4.9 3 4.3 l 198992 l 199000 l 198984
6 1 80 15 23 6 4.9 3 5.1 l 198993 l 199001 l 198985
8 1 90 18 29 8 6.2 3 7.1 l 198994 l 199002 l 198986
8 1.25 90 18 29 8 6.2 3 6.9 l 198995 l 199003 l 198987
10 1.25 100 20 33 10 8 3 8.9 l 198996 l 199004 l 198988
10 1.5 100 20 33 10 8 3 8.6 l 198997 l 199005 l 198989
≤MJ5x0.8 =
47
