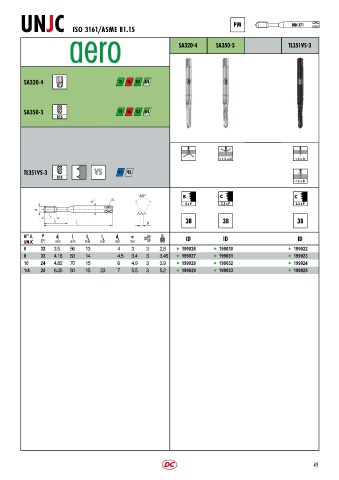

P. 52
UNJC ISO 3161/ASME B1.15 PM DIN 371
SA320«4 SA350«3 TL351VS«3
SA320-4 15 16 52
SA350-3 15 16 52
R15
< 1.5 x D < 2 x D
TL351VS-3 VS 41 42
R15
< 2 x D
B C C
a
d 2
4 x P 2.5 x P 2.5 x P
d 1
l
2
l 3 l
1 P
Ø’’ d 1 P d 1 l 1 l 2 l 3 d 2 a ID ID ID
UNJC TPI mm mm mm mm mm mm
6 32 3.5 56 13 4 3 3 2.8 l 199026 l 199030 l 199022
8 32 4.16 63 14 4.5 3.4 3 3.45 l 199027 l 199031 l 199023
10 24 4.82 70 15 6 4.9 3 3.9 l 199028 l 199032 l 199024
1/4 20 6.35 80 15 23 7 5.5 3 5.2 l 199029 l 199033 l 199025
49
