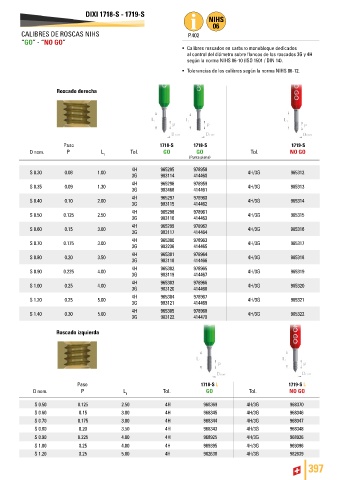

Page 399 - DC_SWISS(Catalogue_TM_ES-EN)

DIXI 1718-S - 1719-S

CALIBRES DE ROSCAS NIHS P.402
“GO” - “NO GO”
• Calibres roscados en carburo monobloque dedicados
al control del diámetro sobre flancos de los roscados 3G y 4H
según la norma NIHS 06-10 (ISO 1501 / DIN 14).

• Tolerancias de los calibres según la norma NIHS 06-12.

Roscado derecha

Paso 1718-S 1718-S 1719-S
D nom. P L 1 Tol. GO GO Tol. NO GO
(Punta plana)
4H 965295 978958
S 0.30 0.08 1.00 4H/3G 965312
3G 983114 414460
4H 965296 978959
S 0.35 0.09 1.30 4H/3G 965313
3G 983468 414461
4H 965297 978960
S 0.40 0.10 2.00 4H/3G 965314
3G 983115 414462
4H 965298 978961
S 0.50 0.125 2.50 4H/3G 965315
3G 983116 414463
4H 965299 978962
S 0.60 0.15 3.00 4H/3G 965316
3G 983117 414464
4H 965300 978963
S 0.70 0.175 3.00 4H/3G 965317
3G 983236 414465
4H 965301 978964
S 0.80 0.20 3.50 4H/3G 965318
3G 983118 414466
4H 965302 978965
S 0.90 0.225 4.00 4H/3G 965319
3G 983119 414467
4H 965303 978966
S 1.00 0.25 4.00 4H/3G 965320
3G 983120 414468
4H 965304 978967
S 1.20 0.25 5.00 4H/3G 965321
3G 983121 414469
4H 965305 978968
S 1.40 0.30 5.00 4H/3G 965322
3G 983122 414470

Roscado izquierda

Paso 1718-S L 1719-S L
D nom. P L Tol. GO Tol. NO GO
1
S 0.50 0.125 2.50 4H 968369 4H/3G 968370
S 0.60 0.15 3.00 4H 968345 4H/3G 968346
S 0.70 0.175 3.00 4H 968344 4H/3G 968347
S 0.80 0.20 3.50 4H 968343 4H/3G 968348
S 0.90 0.225 4.00 4H 968925 4H/3G 968926
S 1.00 0.25 4.00 4H 969395 4H/3G 969396
S 1.20 0.25 5.00 4H 982638 4H/3G 982639
