P. 117

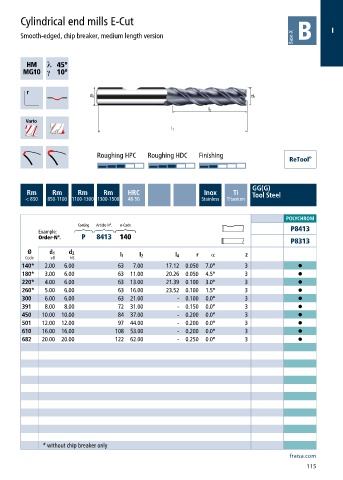

Cylindrical end mills E-Cut
I
Smooth-edged, chip breaker, medium length version
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Rm HRC Inox Ti Tool Steel
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
POLYCHROM
Coating Article-N°. ø-Code
Example: P8413
Order-N°. P 8413 140
P8313
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 r z
140* 2.00 6.00 63 7.00 17.12 0.050 7.0° 3 •
180* 3.00 6.00 63 11.00 20.26 0.050 4.5° 3 •
220* 4.00 6.00 63 13.00 21.39 0.100 3.0° 3 •
260* 5.00 6.00 63 16.00 23.52 0.100 1.5° 3 •
300 6.00 6.00 63 21.00 - 0.100 0.0° 3 •
391 8.00 8.00 72 31.00 - 0.150 0.0° 3 •
450 10.00 10.00 84 37.00 - 0.200 0.0° 3 •
501 12.00 12.00 97 44.00 - 0.200 0.0° 3 •
610 16.00 16.00 108 53.00 - 0.200 0.0° 3 •
682 20.00 20.00 122 62.00 - 0.250 0.0° 3 •
* without chip breaker only
fraisa.com
115
