P. 119

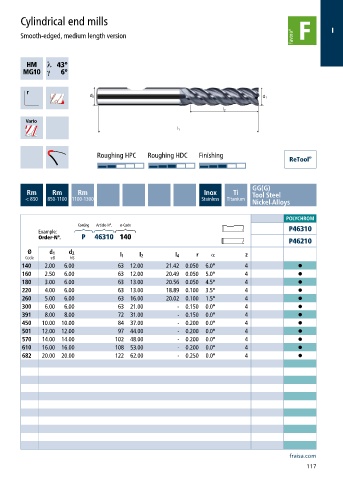

Cylindrical end mills
I
Smooth-edged, medium length version
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P46310
Order-N°. P 46310 140
P46210
Ø d 1 d 2 α
Code e8 h6 l 1 l 2 l 4 r z
140 2.00 6.00 63 12.00 21.42 0.050 6.0° 4 •
160 2.50 6.00 63 12.00 20.49 0.050 5.0° 4 •
180 3.00 6.00 63 13.00 20.56 0.050 4.5° 4 •
220 4.00 6.00 63 13.00 18.89 0.100 3.5° 4 •
260 5.00 6.00 63 16.00 20.02 0.100 1.5° 4 •
300 6.00 6.00 63 21.00 - 0.150 0.0° 4 •
391 8.00 8.00 72 31.00 - 0.150 0.0° 4 •
450 10.00 10.00 84 37.00 - 0.200 0.0° 4 •
501 12.00 12.00 97 44.00 - 0.200 0.0° 4 •
570 14.00 14.00 102 48.00 - 0.200 0.0° 4 •
610 16.00 16.00 108 53.00 - 0.200 0.0° 4 •
682 20.00 20.00 122 62.00 - 0.250 0.0° 4 •
fraisa.com
117
