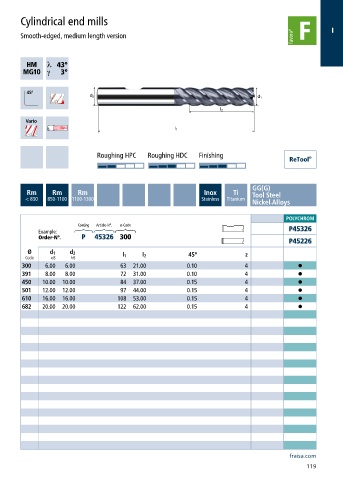

P. 121
Cylindrical end mills
I
Smooth-edged, medium length version
h ƍ
a ƍ
Roughing HPC Roughing HDC Finishing
GG(G)
Rm Rm Rm Inox Ti Tool Steel
< 850 850-1100 1100-1300 Stainless Titanium
Nickel-Alloys
POLYCHROM
Coating Article-N°. ø-Code
Example: P45326
Order-N°. P 45326 300
P45226
Ø d 1 d 2
Code e8 h6 l 1 l 2 45° z
300 6.00 6.00 63 21.00 0.10 4 •
391 8.00 8.00 72 31.00 0.10 4 •
450 10.00 10.00 84 37.00 0.15 4 •
501 12.00 12.00 97 44.00 0.15 4 •
610 16.00 16.00 108 53.00 0.15 4 •
682 20.00 20.00 122 62.00 0.15 4 •
fraisa.com
119
