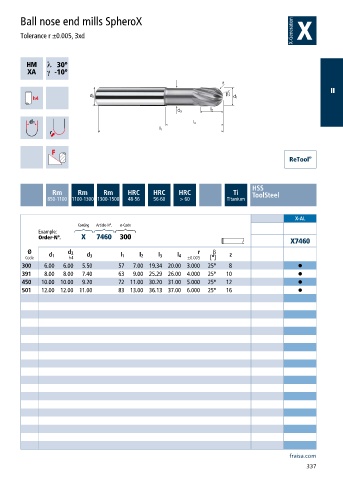

Ball nose end mills SpheroX
Tolerance r ±0.005, 3xd
h ƍ
a ƍ
II
HSS
Rm Rm Rm HRC HRC HRC Ti ToolSteel
850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Titanium
X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 7460 300
X7460
Ø d 2 r β
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 [°] z
300 6.00 6.00 5.50 57 7.00 19.34 20.00 3.000 25° 8 •
391 8.00 8.00 7.40 63 9.00 25.29 26.00 4.000 25° 10 •
450 10.00 10.00 9.20 72 11.00 30.20 31.00 5.000 25° 12 •
501 12.00 12.00 11.00 83 13.00 36.13 37.00 6.000 25° 16 •
fraisa.com
