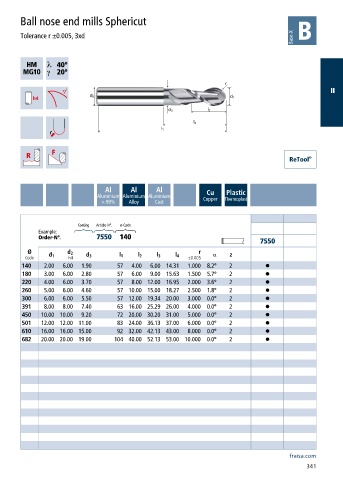

Ball nose end mills Sphericut

Tolerance r ±0.005, 3xd

h ƍ
a ƍ

II

Al Al Al
Aluminium Aluminium Aluminium Cu Plastic
> 99% Alloy Cast Copper Thermoplast

Coating Article-N°. ø-Code
Example:
Order-N°. 7550 140
7550
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
140 2.00 6.00 1.90 57 4.00 6.00 14.31 1.000 8.2° 2 •
180 3.00 6.00 2.80 57 6.00 9.00 15.63 1.500 5.7° 2 •
220 4.00 6.00 3.70 57 8.00 12.00 16.95 2.000 3.6° 2 •
260 5.00 6.00 4.60 57 10.00 15.00 18.27 2.500 1.8° 2 •
300 6.00 6.00 5.50 57 12.00 19.34 20.00 3.000 0.0° 2 •
391 8.00 8.00 7.40 63 16.00 25.29 26.00 4.000 0.0° 2 •
450 10.00 10.00 9.20 72 20.00 30.20 31.00 5.000 0.0° 2 •
501 12.00 12.00 11.00 83 24.00 36.13 37.00 6.000 0.0° 2 •
610 16.00 16.00 15.00 92 32.00 42.13 43.00 8.000 0.0° 2 •
682 20.00 20.00 19.00 104 40.00 52.13 53.00 10.000 0.0° 2 •
