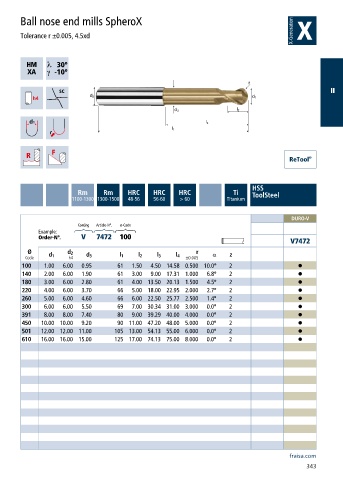

Ball nose end mills SpheroX

Tolerance r ±0.005, 4.5xd

h ƍ
a ƍ

II

HSS
Rm Rm HRC HRC HRC Ti ToolSteel
1100-1300 1300-1500 48-56 56-60 > 60 Titanium

DURO-V
Coating Article-N°. ø-Code
Example:
Order-N°. V 7472 100
V7472
Ø d 2 r α
Code d 1 h4 d 3 l 1 l 2 l 3 l 4 ±0.005 z
100 1.00 6.00 0.95 61 1.50 4.50 14.58 0.500 10.0° 2 •
140 2.00 6.00 1.90 61 3.00 9.00 17.31 1.000 6.8° 2 •
180 3.00 6.00 2.80 61 4.00 13.50 20.13 1.500 4.5° 2 •
220 4.00 6.00 3.70 66 5.00 18.00 22.95 2.000 2.7° 2 •
260 5.00 6.00 4.60 66 6.00 22.50 25.77 2.500 1.4° 2 •
300 6.00 6.00 5.50 69 7.00 30.34 31.00 3.000 0.0° 2 •
391 8.00 8.00 7.40 80 9.00 39.29 40.00 4.000 0.0° 2 •
450 10.00 10.00 9.20 90 11.00 47.20 48.00 5.000 0.0° 2 •
501 12.00 12.00 11.00 105 13.00 54.13 55.00 6.000 0.0° 2 •
610 16.00 16.00 15.00 125 17.00 74.13 75.00 8.000 0.0° 2 •
