Page 101 - Carbide drills I Thread cutting tools 2023
P. 101

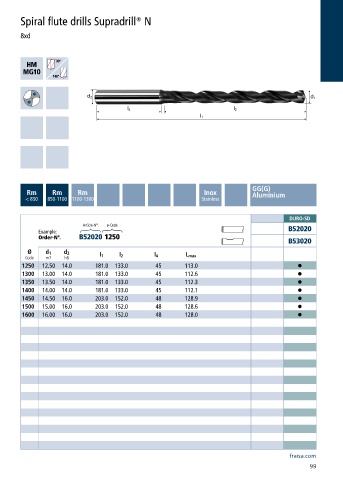

Spiral flute drills Supradrill® N
8xd
GG(G)
Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 Stainless
DURO-SD
Article-N°. ø-Code
Example: B52020
Order-N°. B52020 1250
B53020
Ø d 1 d 2
Code m7 h6 l 1 l 2 l 4 L max
1250 12.50 14.0 181.0 133.0 45 113.0 •
1300 13.00 14.0 181.0 133.0 45 112.6 •
1350 13.50 14.0 181.0 133.0 45 112.3 •
1400 14.00 14.0 181.0 133.0 45 112.1 •
1450 14.50 16.0 203.0 152.0 48 128.9 •
1500 15.00 16.0 203.0 152.0 48 128.6 •
1600 16.00 16.0 203.0 152.0 48 128.0 •
fraisa.com
99
