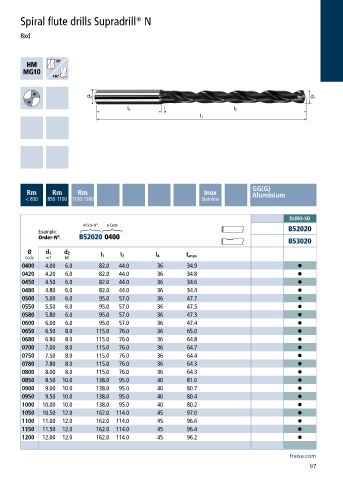

Spiral flute drills Supradrill® N

8xd

GG(G)
Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 Stainless

DURO-SD
Article-N°. ø-Code
Example: B52020
Order-N°. B52020 0400
B53020
Ø d 1 d 2
Code m7 h6 l 1 l 2 l 4 L max
0400 4.00 6.0 82.0 44.0 36 34.9 •
0420 4.20 6.0 82.0 44.0 36 34.8 •
0450 4.50 6.0 82.0 44.0 36 34.6 •
0480 4.80 6.0 82.0 44.0 36 34.4 •
0500 5.00 6.0 95.0 57.0 36 47.7 •
0550 5.50 6.0 95.0 57.0 36 47.5 •
0580 5.80 6.0 95.0 57.0 36 47.3 •
0600 6.00 6.0 95.0 57.0 36 47.4 •
0650 6.50 8.0 115.0 76.0 36 65.0 •
0680 6.80 8.0 115.0 76.0 36 64.8 •
0700 7.00 8.0 115.0 76.0 36 64.7 •
0750 7.50 8.0 115.0 76.0 36 64.4 •
0780 7.80 8.0 115.0 76.0 36 64.3 •
0800 8.00 8.0 115.0 76.0 36 64.3 •
0850 8.50 10.0 138.0 95.0 40 81.0 •
0900 9.00 10.0 138.0 95.0 40 80.7 •
0950 9.50 10.0 138.0 95.0 40 80.4 •
1000 10.00 10.0 138.0 95.0 40 80.2 •
1050 10.50 12.0 162.0 114.0 45 97.0 •
1100 11.00 12.0 162.0 114.0 45 96.6 •
1150 11.50 12.0 162.0 114.0 45 96.4 •
1200 12.00 12.0 162.0 114.0 45 96.2 •

fraisa.com
97
