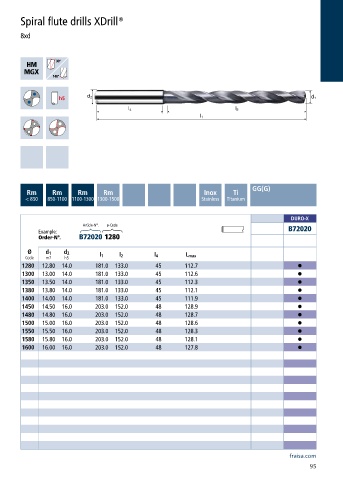

Spiral flute drills XDrill®
8xd
GG(G)
Rm Rm Rm Rm Inox Ti
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72020
Order-N°. B72020 1280
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
1280 12.80 14.0 181.0 133.0 45 112.7 •
1300 13.00 14.0 181.0 133.0 45 112.6 •
1350 13.50 14.0 181.0 133.0 45 112.3 •
1380 13.80 14.0 181.0 133.0 45 112.1 •
1400 14.00 14.0 181.0 133.0 45 111.9 •
1450 14.50 16.0 203.0 152.0 48 128.9 •
1480 14.80 16.0 203.0 152.0 48 128.7 •
1500 15.00 16.0 203.0 152.0 48 128.6 •
1550 15.50 16.0 203.0 152.0 48 128.3 •
1580 15.80 16.0 203.0 152.0 48 128.1 •
1600 16.00 16.0 203.0 152.0 48 127.8 •
