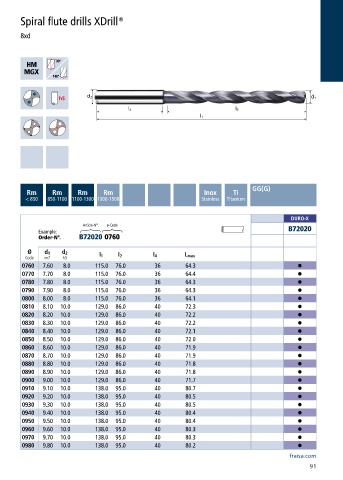

Spiral flute drills XDrill®

8xd

GG(G)
Rm Rm Rm Rm Inox Ti
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium

DURO-X
Article-N°. ø-Code
Example: B72020
Order-N°. B72020 0760
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0760 7.60 8.0 115.0 76.0 36 64.3 •
0770 7.70 8.0 115.0 76.0 36 64.4 •
0780 7.80 8.0 115.0 76.0 36 64.3 •
0790 7.90 8.0 115.0 76.0 36 64.3 •
0800 8.00 8.0 115.0 76.0 36 64.1 •
0810 8.10 10.0 129.0 86.0 40 72.3 •
0820 8.20 10.0 129.0 86.0 40 72.2 •
0830 8.30 10.0 129.0 86.0 40 72.2 •
0840 8.40 10.0 129.0 86.0 40 72.1 •
0850 8.50 10.0 129.0 86.0 40 72.0 •
0860 8.60 10.0 129.0 86.0 40 71.9 •
0870 8.70 10.0 129.0 86.0 40 71.9 •
0880 8.80 10.0 129.0 86.0 40 71.8 •
0890 8.90 10.0 129.0 86.0 40 71.8 •
0900 9.00 10.0 129.0 86.0 40 71.7 •
0910 9.10 10.0 138.0 95.0 40 80.7 •
0920 9.20 10.0 138.0 95.0 40 80.5 •
0930 9.30 10.0 138.0 95.0 40 80.5 •
0940 9.40 10.0 138.0 95.0 40 80.4 •
0950 9.50 10.0 138.0 95.0 40 80.4 •
0960 9.60 10.0 138.0 95.0 40 80.3 •
0970 9.70 10.0 138.0 95.0 40 80.3 •
0980 9.80 10.0 138.0 95.0 40 80.2 •
