Page 89 - Carbide drills I Thread cutting tools 2023
P. 89

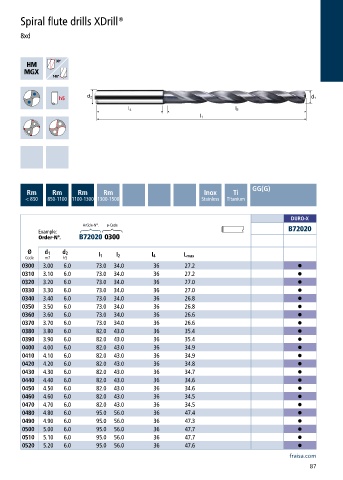

Spiral flute drills XDrill®
8xd
GG(G)
Rm Rm Rm Rm Inox Ti
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium
DURO-X
Article-N°. ø-Code
Example: B72020
Order-N°. B72020 0300
Ø d 1 d 2
Code m7 h5 l 1 l 2 l 4 L max
0300 3.00 6.0 73.0 34.0 36 27.2 •
0310 3.10 6.0 73.0 34.0 36 27.2 •
0320 3.20 6.0 73.0 34.0 36 27.0 •
0330 3.30 6.0 73.0 34.0 36 27.0 •
0340 3.40 6.0 73.0 34.0 36 26.8 •
0350 3.50 6.0 73.0 34.0 36 26.8 •
0360 3.60 6.0 73.0 34.0 36 26.6 •
0370 3.70 6.0 73.0 34.0 36 26.6 •
0380 3.80 6.0 82.0 43.0 36 35.4 •
0390 3.90 6.0 82.0 43.0 36 35.4 •
0400 4.00 6.0 82.0 43.0 36 34.9 •
0410 4.10 6.0 82.0 43.0 36 34.9 •
0420 4.20 6.0 82.0 43.0 36 34.8 •
0430 4.30 6.0 82.0 43.0 36 34.7 •
0440 4.40 6.0 82.0 43.0 36 34.6 •
0450 4.50 6.0 82.0 43.0 36 34.6 •
0460 4.60 6.0 82.0 43.0 36 34.5 •
0470 4.70 6.0 82.0 43.0 36 34.5 •
0480 4.80 6.0 95.0 56.0 36 47.4 •
0490 4.90 6.0 95.0 56.0 36 47.3 •
0500 5.00 6.0 95.0 56.0 36 47.7 •
0510 5.10 6.0 95.0 56.0 36 47.7 •
0520 5.20 6.0 95.0 56.0 36 47.6 •
fraisa.com
87
