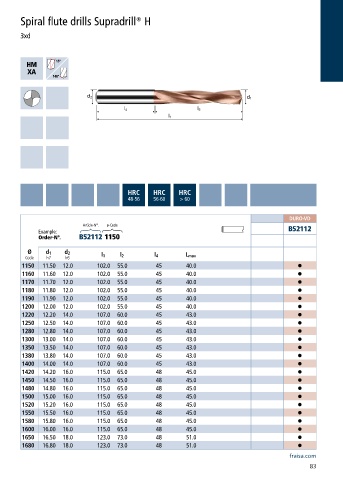

Spiral flute drills Supradrill® H

3xd

HRC HRC HRC
48-56 56-60 > 60

DURO-VD
Article-N°. ø-Code
Example: B52112
Order-N°. B52112 1150
Ø d 1 d 2
Code h7 h6 l 1 l 2 l 4 L max
1150 11.50 12.0 102.0 55.0 45 40.0 •
1160 11.60 12.0 102.0 55.0 45 40.0 •
1170 11.70 12.0 102.0 55.0 45 40.0 •
1180 11.80 12.0 102.0 55.0 45 40.0 •
1190 11.90 12.0 102.0 55.0 45 40.0 •
1200 12.00 12.0 102.0 55.0 45 40.0 •
1220 12.20 14.0 107.0 60.0 45 43.0 •
1250 12.50 14.0 107.0 60.0 45 43.0 •
1280 12.80 14.0 107.0 60.0 45 43.0 •
1300 13.00 14.0 107.0 60.0 45 43.0 •
1350 13.50 14.0 107.0 60.0 45 43.0 •
1380 13.80 14.0 107.0 60.0 45 43.0 •
1400 14.00 14.0 107.0 60.0 45 43.0 •
1420 14.20 16.0 115.0 65.0 48 45.0 •
1450 14.50 16.0 115.0 65.0 48 45.0 •
1480 14.80 16.0 115.0 65.0 48 45.0 •
1500 15.00 16.0 115.0 65.0 48 45.0 •
1520 15.20 16.0 115.0 65.0 48 45.0 •
1550 15.50 16.0 115.0 65.0 48 45.0 •
1580 15.80 16.0 115.0 65.0 48 45.0 •
1600 16.00 16.0 115.0 65.0 48 45.0 •
1650 16.50 18.0 123.0 73.0 48 51.0 •
1680 16.80 18.0 123.0 73.0 48 51.0 •
