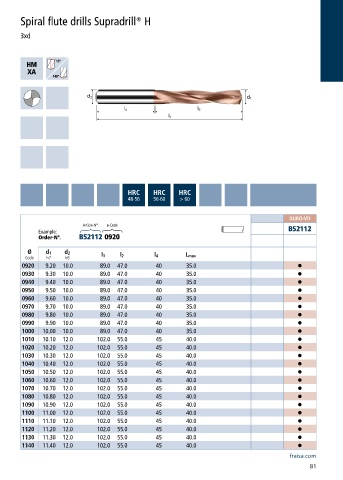

Page 83 - Carbide drills I Thread cutting tools 2023

Spiral flute drills Supradrill® H

3xd

HRC HRC HRC
48-56 56-60 > 60

DURO-VD
Article-N°. ø-Code
Example: B52112
Order-N°. B52112 0920
Ø d 1 d 2
Code h7 h6 l 1 l 2 l 4 L max
0920 9.20 10.0 89.0 47.0 40 35.0 •
0930 9.30 10.0 89.0 47.0 40 35.0 •
0940 9.40 10.0 89.0 47.0 40 35.0 •
0950 9.50 10.0 89.0 47.0 40 35.0 •
0960 9.60 10.0 89.0 47.0 40 35.0 •
0970 9.70 10.0 89.0 47.0 40 35.0 •
0980 9.80 10.0 89.0 47.0 40 35.0 •
0990 9.90 10.0 89.0 47.0 40 35.0 •
1000 10.00 10.0 89.0 47.0 40 35.0 •
1010 10.10 12.0 102.0 55.0 45 40.0 •
1020 10.20 12.0 102.0 55.0 45 40.0 •
1030 10.30 12.0 102.0 55.0 45 40.0 •
1040 10.40 12.0 102.0 55.0 45 40.0 •
1050 10.50 12.0 102.0 55.0 45 40.0 •
1060 10.60 12.0 102.0 55.0 45 40.0 •
1070 10.70 12.0 102.0 55.0 45 40.0 •
1080 10.80 12.0 102.0 55.0 45 40.0 •
1090 10.90 12.0 102.0 55.0 45 40.0 •
1100 11.00 12.0 102.0 55.0 45 40.0 •
1110 11.10 12.0 102.0 55.0 45 40.0 •
1120 11.20 12.0 102.0 55.0 45 40.0 •
1130 11.30 12.0 102.0 55.0 45 40.0 •
1140 11.40 12.0 102.0 55.0 45 40.0 •
fraisa.com
81
