P. 81

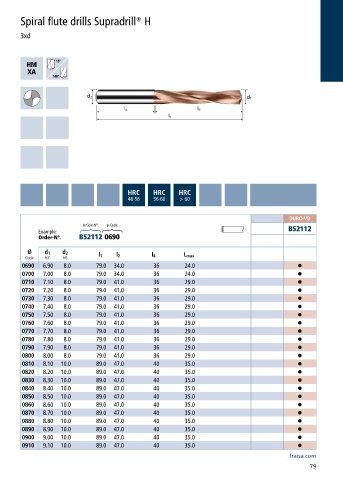

Spiral flute drills Supradrill® H
3xd
HRC HRC HRC
48-56 56-60 > 60
DURO-VD
Article-N°. ø-Code
Example: B52112
Order-N°. B52112 0690
Ø d 1 d 2
Code h7 h6 l 1 l 2 l 4 L max
0690 6.90 8.0 79.0 34.0 36 24.0 •
0700 7.00 8.0 79.0 34.0 36 24.0 •
0710 7.10 8.0 79.0 41.0 36 29.0 •
0720 7.20 8.0 79.0 41.0 36 29.0 •
0730 7.30 8.0 79.0 41.0 36 29.0 •
0740 7.40 8.0 79.0 41.0 36 29.0 •
0750 7.50 8.0 79.0 41.0 36 29.0 •
0760 7.60 8.0 79.0 41.0 36 29.0 •
0770 7.70 8.0 79.0 41.0 36 29.0 •
0780 7.80 8.0 79.0 41.0 36 29.0 •
0790 7.90 8.0 79.0 41.0 36 29.0 •
0800 8.00 8.0 79.0 41.0 36 29.0 •
0810 8.10 10.0 89.0 47.0 40 35.0 •
0820 8.20 10.0 89.0 47.0 40 35.0 •
0830 8.30 10.0 89.0 47.0 40 35.0 •
0840 8.40 10.0 89.0 47.0 40 35.0 •
0850 8.50 10.0 89.0 47.0 40 35.0 •
0860 8.60 10.0 89.0 47.0 40 35.0 •
0870 8.70 10.0 89.0 47.0 40 35.0 •
0880 8.80 10.0 89.0 47.0 40 35.0 •
0890 8.90 10.0 89.0 47.0 40 35.0 •
0900 9.00 10.0 89.0 47.0 40 35.0 •
0910 9.10 10.0 89.0 47.0 40 35.0 •
fraisa.com
79
