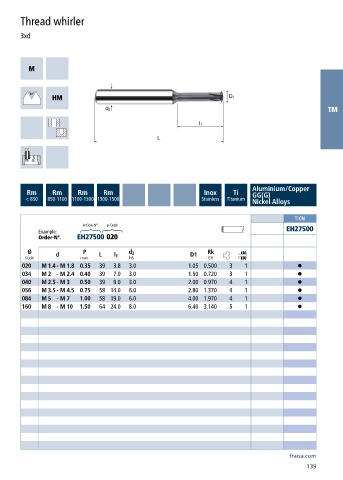

Thread whirler
3xd
TM
Aluminium/Copper
Rm Rm Rm Rm Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium Nickel-Alloys
TiCN
Article-N°. ø-Code
Example: EH27500
Order-N°. EH27500 020
Ø P d 2 Rk
Code d max. L l 1 h6 D1 6H
020 M 1.4 - M 1.8 0.35 39 3.8 3.0 1.05 0.500 3 1 •
034 M 2 - M 2.4 0.40 39 7.0 3.0 1.50 0.720 3 1 •
040 M 2.5 - M 3 0.50 39 9.0 3.0 2.00 0.970 4 1 •
056 M 3.5 - M 4.5 0.75 58 14.0 6.0 2.80 1.370 4 1 •
084 M 5 - M 7 1.00 58 19.0 6.0 4.00 1.970 4 1 •
160 M 8 - M 10 1.50 64 24.0 8.0 6.40 3.140 5 1 •
