P. 143

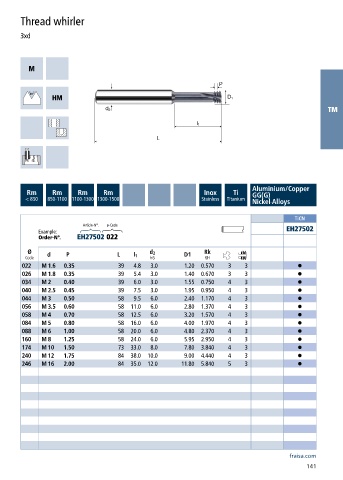

Thread whirler
3xd
TM
Aluminium/Copper
Rm Rm Rm Rm Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium Nickel-Alloys
TiCN
Article-N°. ø-Code
Example: EH27502
Order-N°. EH27502 022
Ø d 2 Rk
Code d P L l 1 h6 D1 6H
022 M 1.6 0.35 39 4.8 3.0 1.20 0.570 3 3 •
026 M 1.8 0.35 39 5.4 3.0 1.40 0.670 3 3 •
034 M 2 0.40 39 6.0 3.0 1.55 0.750 4 3 •
040 M 2.5 0.45 39 7.5 3.0 1.95 0.950 4 3 •
044 M 3 0.50 58 9.5 6.0 2.40 1.170 4 3 •
056 M 3.5 0.60 58 11.0 6.0 2.80 1.370 4 3 •
058 M 4 0.70 58 12.5 6.0 3.20 1.570 4 3 •
084 M 5 0.80 58 16.0 6.0 4.00 1.970 4 3 •
088 M 6 1.00 58 20.0 6.0 4.80 2.370 4 3 •
160 M 8 1.25 58 24.0 6.0 5.95 2.950 4 3 •
174 M 10 1.50 73 33.0 8.0 7.80 3.840 4 3 •
240 M 12 1.75 84 38.0 10.0 9.00 4.440 4 3 •
246 M 16 2.00 84 35.0 12.0 11.80 5.840 5 3 •
