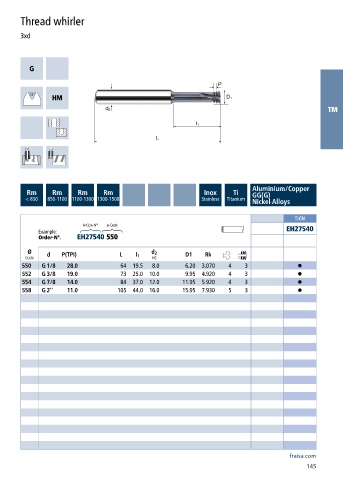

Page 147 - Carbide drills I Thread cutting tools 2023
P. 147
Thread whirler
3xd
TM
Aluminium/Copper
Rm Rm Rm Rm Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium Nickel-Alloys
TiCN
Article-N°. ø-Code
Example: EH27540
Order-N°. EH27540 550
Ø d 2
Code d P(TPI) L l 1 h6 D1 Rk
550 G 1/8 28.0 64 19.5 8.0 6.20 3.070 4 3 •
552 G 3/8 19.0 73 25.0 10.0 9.95 4.920 4 3 •
554 G 7/8 14.0 84 37.0 12.0 11.95 5.920 4 3 •
558 G 2‘‘ 11.0 105 44.0 16.0 15.95 7.930 5 3 •
