Page 145 - Carbide drills I Thread cutting tools 2023
P. 145

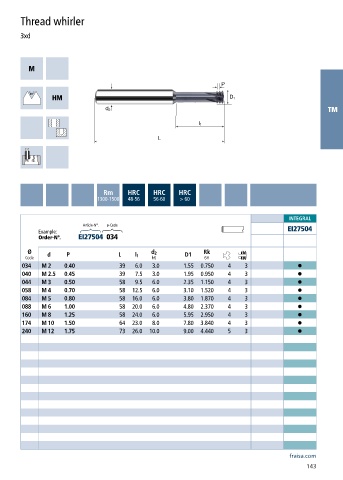

Thread whirler

       3xd










                                                                                            TM













                              Rm    HRC     HRC    HRC
                            1300-1500  48-56  56-60  > 60

                                                                                 INTEGRAL
                        Article-N°.  ø-Code
            Example:                                                             EI27504
            Order-N°.  EI27504  034
         Ø                                 d 2            Rk
        Code  d     P             L    l 1  h6      D1    6H
       034   M 2   0.40           39   6.0  3.0     1.55  0.750  4   3              •
       040   M 2.5  0.45          39   7.5  3.0     1.95  0.950  4   3              •
       044   M 3   0.50           58   9.5  6.0     2.35  1.150  4   3              •
       058   M 4   0.70           58  12.5  6.0     3.10  1.520  4   3              •
       084   M 5   0.80           58  16.0  6.0     3.80  1.870  4   3              •
       088   M 6   1.00           58  20.0  6.0     4.80  2.370  4   3              •
       160   M 8   1.25           58  24.0  6.0     5.95  2.950  4   3              •
       174   M 10  1.50           64  23.0  8.0     7.80  3.840  4   3              •
       240   M 12  1.75           73  26.0  10.0    9.00  4.440  5   3              •




















                                                                                 fraisa.com
                                                                                      143
