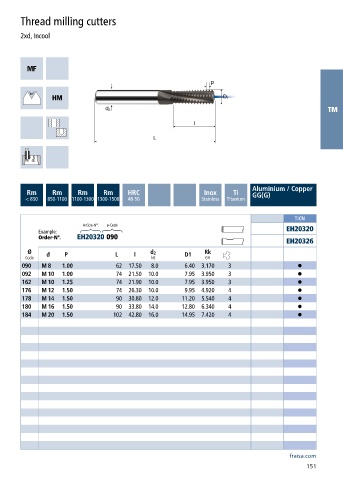

Page 153 - Carbide drills I Thread cutting tools 2023
P. 153
Thread milling cutters
2xd, Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH20320
Order-N°. EH20320 090
EH20326
Ø d 2 Rk
Code d P L l h6 D1 6H
090 M 8 1.00 62 17.50 8.0 6.40 3.170 3 •
092 M 10 1.00 74 21.50 10.0 7.95 3.950 3 •
162 M 10 1.25 74 21.90 10.0 7.95 3.950 3 •
176 M 12 1.50 74 26.30 10.0 9.95 4.920 4 •
178 M 14 1.50 90 30.80 12.0 11.20 5.540 4 •
180 M 16 1.50 90 33.80 14.0 12.80 6.340 4 •
184 M 20 1.50 102 42.80 16.0 14.95 7.420 4 •
