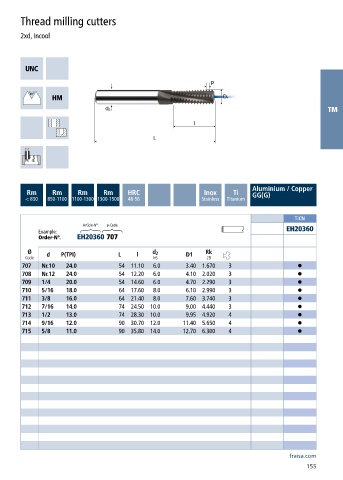

Thread milling cutters
2xd, Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH20360
Order-N°. EH20360 707
Ø d 2 Rk
Code d P(TPI) L l h6 D1 2B
707 Nr.10 24.0 54 11.10 6.0 3.40 1.670 3 •
708 Nr.12 24.0 54 12.20 6.0 4.10 2.020 3 •
709 1/4 20.0 54 14.60 6.0 4.70 2.290 3 •
710 5/16 18.0 64 17.60 8.0 6.10 2.990 3 •
711 3/8 16.0 64 21.40 8.0 7.60 3.740 3 •
712 7/16 14.0 74 24.50 10.0 9.00 4.440 3 •
713 1/2 13.0 74 28.30 10.0 9.95 4.920 4 •
714 9/16 12.0 90 30.70 12.0 11.40 5.650 4 •
715 5/8 11.0 90 35.80 14.0 12.70 6.300 4 •
