Page 161 - Carbide drills I Thread cutting tools 2023
P. 161

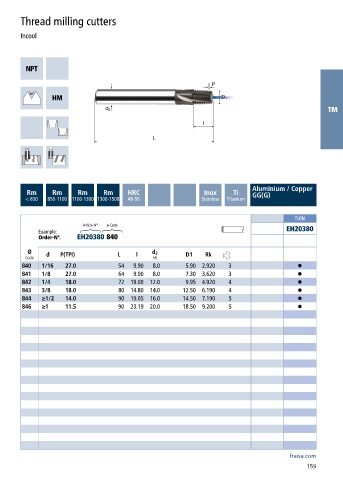

Thread milling cutters
Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH20380
Order-N°. EH20380 840
Ø d 2
Code d P(TPI) L l h6 D1 Rk
840 1/16 27.0 54 9.90 8.0 5.90 2.920 3 •
841 1/8 27.0 64 9.90 8.0 7.30 3.620 3 •
842 1/4 18.0 72 19.00 12.0 9.95 4.920 4 •
843 3/8 18.0 80 14.80 14.0 12.50 6.190 4 •
844 ≥1/2 14.0 90 19.05 16.0 14.50 7.190 5 •
846 ≥1 11.5 90 23.19 20.0 18.50 9.200 5 •
fraisa.com
159
