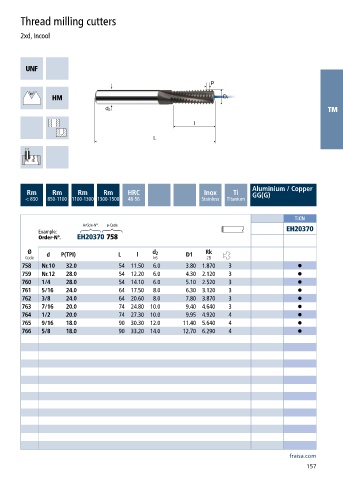

Page 159 - Carbide drills I Thread cutting tools 2023
P. 159
Thread milling cutters
2xd, Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH20370
Order-N°. EH20370 758
Ø d 2 Rk
Code d P(TPI) L l h6 D1 2B
758 Nr.10 32.0 54 11.50 6.0 3.80 1.870 3 •
759 Nr.12 28.0 54 12.20 6.0 4.30 2.120 3 •
760 1/4 28.0 54 14.10 6.0 5.10 2.520 3 •
761 5/16 24.0 64 17.50 8.0 6.30 3.120 3 •
762 3/8 24.0 64 20.60 8.0 7.80 3.870 3 •
763 7/16 20.0 74 24.80 10.0 9.40 4.640 3 •
764 1/2 20.0 74 27.30 10.0 9.95 4.920 4 •
765 9/16 18.0 90 30.30 12.0 11.40 5.640 4 •
766 5/8 18.0 90 33.20 14.0 12.70 6.290 4 •
