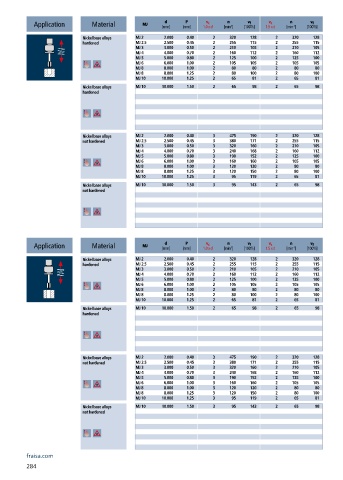

Page 286 - Carbide drills I Thread cutting tools 2023

n
v f
v c
d
P
v c
n
v f
Application Material MJ [mm] [mm] 1.0 x d [min ] -1 [100%] 1.5 x d [min ] -1 [100%]
Nickel base alloys MJ 2 2.000 0.40 2 320 128 2 320 128
hardened MJ 2.5 2.500 0.45 2 255 115 2 255 115
MJ 3 3.000 0.50 2 210 105 2 210 105
MJ 4 4.000 0.70 2 160 112 2 160 112
MJ 5 5.000 0.80 2 125 100 2 125 100
MJ 6 6.000 1.00 2 105 105 2 105 105
MJ 8 8.000 1.00 2 80 80 2 80 80
MJ 8 8.000 1.25 2 80 100 2 80 100
MJ 10 10.000 1.25 2 65 81 2 65 81
Nickel base alloys MJ 10 10.000 1.50 2 65 98 2 65 98
hardened
Nickel base alloys MJ 2 2.000 0.40 3 475 190 2 320 128
not hardened MJ 2.5 2.500 0.45 3 380 171 2 255 115
MJ 3 3.000 0.50 3 320 160 2 210 105
MJ 4 4.000 0.70 3 240 168 2 160 112
MJ 5 5.000 0.80 3 190 152 2 125 100
MJ 6 6.000 1.00 3 160 160 2 105 105
MJ 8 8.000 1.00 3 120 120 2 80 80
MJ 8 8.000 1.25 3 120 150 2 80 100
MJ 10 10.000 1.25 3 95 119 2 65 81
Nickel base alloys MJ 10 10.000 1.50 3 95 143 2 65 98
not hardened

v c
v f
d
v c
P
n
v f
n
Application Material MJ [mm] [mm] 1.0 x d [min ] -1 [100%] 1.5 x d [min ] -1 [100%]
Nickel base alloys MJ 2 2.000 0.40 2 320 128 2 320 128
hardened MJ 2.5 2.500 0.45 2 255 115 2 255 115
MJ 3 3.000 0.50 2 210 105 2 210 105
MJ 4 4.000 0.70 2 160 112 2 160 112
MJ 5 5.000 0.80 2 125 100 2 125 100
MJ 6 6.000 1.00 2 105 105 2 105 105
MJ 8 8.000 1.00 2 80 80 2 80 80
MJ 8 8.000 1.25 2 80 100 2 80 100
MJ 10 10.000 1.25 2 65 81 2 65 81
Nickel base alloys MJ 10 10.000 1.50 2 65 98 2 65 98
hardened
Nickel base alloys MJ 2 2.000 0.40 3 475 190 2 320 128
not hardened MJ 2.5 2.500 0.45 3 380 171 2 255 115
MJ 3 3.000 0.50 3 320 160 2 210 105
MJ 4 4.000 0.70 3 240 168 2 160 112
MJ 5 5.000 0.80 3 190 152 2 125 100
MJ 6 6.000 1.00 3 160 160 2 105 105
MJ 8 8.000 1.00 3 120 120 2 80 80
MJ 8 8.000 1.25 3 120 150 2 80 100
MJ 10 10.000 1.25 3 95 119 2 65 81
Nickel base alloys MJ 10 10.000 1.50 3 95 143 2 65 98
not hardened

fraisa.com
284
