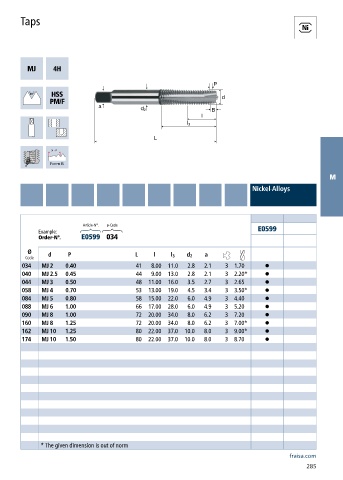

Page 287 - Carbide drills I Thread cutting tools 2023
P. 287
Taps
M
Nickel-Alloys
Article-N°. ø-Code
Example: E0599
Order-N°. E0599 034
Ø
Code d P L l l 3 d 2 a
034 MJ 2 0.40 41 8.00 11.0 2.8 2.1 3 1.70 •
040 MJ 2.5 0.45 44 9.00 13.0 2.8 2.1 3 2.20* •
044 MJ 3 0.50 48 11.00 16.0 3.5 2.7 3 2.65 •
058 MJ 4 0.70 53 13.00 19.0 4.5 3.4 3 3.50* •
084 MJ 5 0.80 58 15.00 22.0 6.0 4.9 3 4.40 •
088 MJ 6 1.00 66 17.00 28.0 6.0 4.9 3 5.20 •
090 MJ 8 1.00 72 20.00 34.0 8.0 6.2 3 7.20 •
160 MJ 8 1.25 72 20.00 34.0 8.0 6.2 3 7.00* •
162 MJ 10 1.25 80 22.00 37.0 10.0 8.0 3 9.00* •
174 MJ 10 1.50 80 22.00 37.0 10.0 8.0 3 8.70 •
* The given dimension is out of norm
