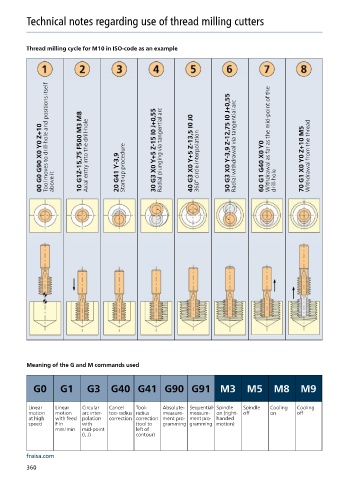

Technical notes regarding use of thread milling cutters



        Thread milling cycle for M10 in ISO-code as an example











             00 G0 G90 X0 Y0 Z+10 Tool moves to drill-hole and positions itself   above it  10 G1Z-15,75 F500 M3 M8 Axial entry into the drill-hole  20 G41 Y-3,9  Start-up procedure  30 G3 X0 Y+5 Z-15 I0 J+0,55 Radial plunging via tangential arc  40 G3 X0 Y+5 Z-13,5 I0 J0 360° circle interpolation  50 G3 X0 Y-3,9 Z-12,75 I0 J+0,55 Radial withdrawal via tangential arc  60 G1 G40








































        Meaning of the G and M commands used

          G0      G1     G3     G40 G41 G90 G91 M3                    M5     M8      M9


         Linear   Linear   Circular   Cancel   Tool-   Absolute-  Sequential-  Spindle   Spindle   Cooling   Cooling
         motion    motion   arc inter-   too-radius  radius   measure-  measure-  on (right-  off  on  off
         at high   with feed  polation   correction correction  ment pro-  ment pro-  handed
         speed  F in    with           (tool to    gramming gramming motion)
                mm/min  mid-point      left of
                        (I, J)         contour)
