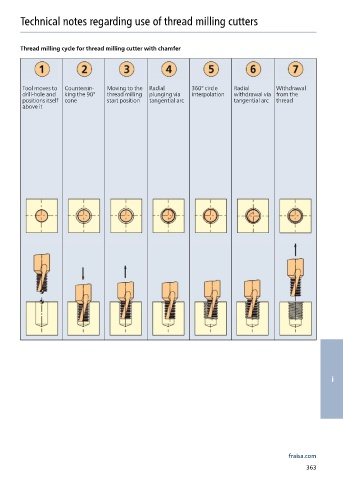

Technical notes regarding use of thread milling cutters

Thread milling cycle for thread milling cutter with chamfer

Tool moves to Countersin- Moving to the Radial 360° circle Radial Withdrawal
drill-hole and king the 90° thread milling plunging via interpolation withdrawal via from the
positions itself cone start position tangential arc tangential arc thread
above it
