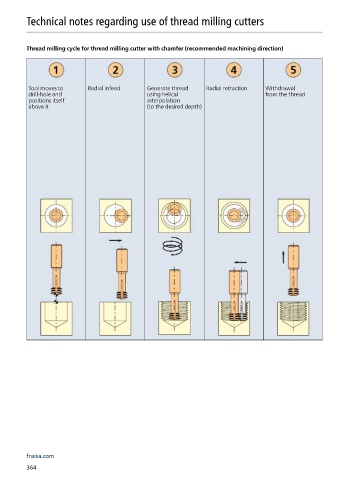

Technical notes regarding use of thread milling cutters

Thread milling cycle for thread milling cutter with chamfer (recommended machining direction)

Tool moves to Radial infeed Generate thread Radial retraction Withdrawal
drill-hole and using helical from the thread
positions itself interpolation
above it (to the desired depth)
