Page 367 - Carbide drills I Thread cutting tools 2023
P. 367

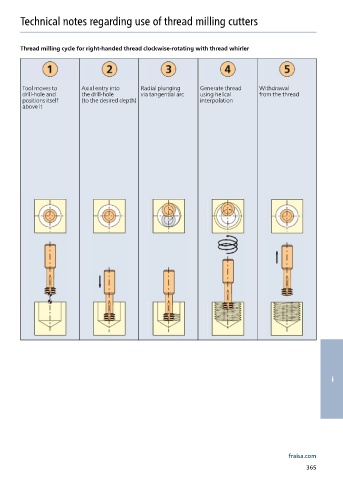

Technical notes regarding use of thread milling cutters
Thread milling cycle for right-handed thread clockwise-rotating with thread whirler
Tool moves to Axial entry into Radial plunging Generate thread Withdrawal
drill-hole and the drill-hole via tangential arc using helical from the thread
positions itself (to the desired depth) interpolation
above it
i
fraisa.com
365
