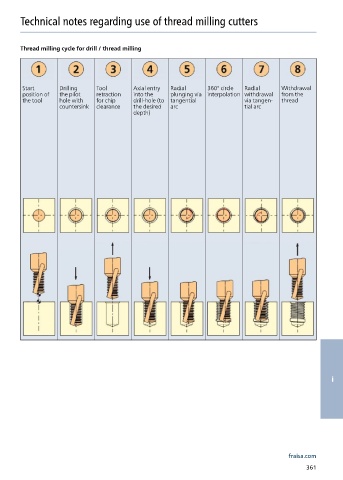

Technical notes regarding use of thread milling cutters

Thread milling cycle for drill / thread milling

Start Drilling Tool Axial entry Radial 360° circle Radial Withdrawal
position of the pilot retraction into the plunging via interpolation withdrawal from the
the tool hole with for chip drill-hole (to tangential via tangen- thread
countersink clearance the desired arc tial arc
depth)
