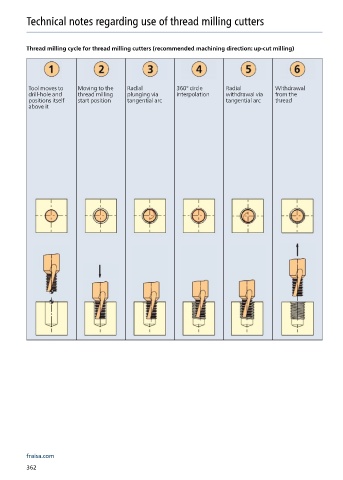

Technical notes regarding use of thread milling cutters
Thread milling cycle for thread milling cutters (recommended machining direction: up-cut milling)
Tool moves to Moving to the Radial 360° circle Radial Withdrawal
drill-hole and thread milling plunging via interpolation withdrawal via from the
positions itself start position tangential arc tangential arc thread
above it
