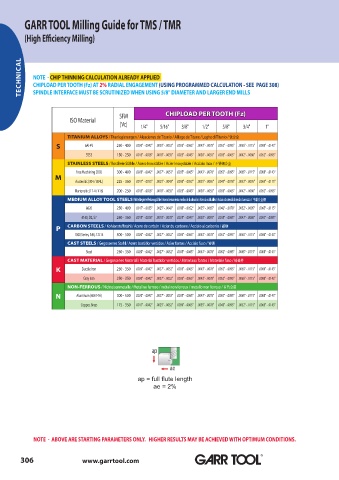

GARR TOOL Milling Guide for TMS / TMR

(High Efficiency Milling)

TECHNICAL NOTE - CHIP THINNING CALCULATION ALREADY APPLIED

CHIPLOAD PER TOOTH (Fz) AT 2% RADIAL ENGAGEMENT (USING PROGRAMMED CALCULATION - SEE PAGE 308)
SPINDLE INTERFACE MUST BE SCRUTINIZED WHEN USING 5/8" DIAMETER AND LARGER END MILLS

T
OO
TH (Fz)
CHIPL
O
AD PER
SFM CHIPLOAD PER TOOTH (Fz)
ISO Material
(Vc) 1/4" 5/16" 3/8" 1/2" 5/8" 3/4" 1"
/
T
eghe di
itane / L
T
itanleg
lliage de
itanio / A
ierungen / A
T
leaciones de
T
itanio /
TITANIUM ALLOYS / Titanlegierungen / Aleaciones de Titanio / Alliage de Titane / Leghe di Titanio / 钛合金
钛合金
S 6Al-4V 250 - 400 .0020" - .0042" .0030" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115" .0080" - .0143"
5553 150 - 250 .0015" - .0028" .0018" - .0035" .0025" - .0043" .0030" - .0055" .0035" - .0065" .0042" - .0080" .0052" - .0095"
x
ostfr
eie S
er
c
cier I
xidable / A
tähle / A
no
no
o I
no
c
ciaio I
/ R
dable / A
y
x /
不锈钢合金
STAINLESS STEELS / Rostfreie Stähle / Acero Inoxidable / Acier Inoxydable / Acciaio Inox / 不锈钢合金
Free Machining (303) 300 - 400 .0020" - .0042" .0027" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115" .0080" - .0143"
M
Austenitic (304 / 304L) 225 - 350 .0017" - .0035" .0025" - .0043" .0030" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115"
Martensitic (17-4 / 416) 200 - 250 .0015" - .0028" .0018" - .0035" .0025" - .0043" .0030" - .0055" .0035" - .0065" .0042" - .0080" .0052" - .0095"
eugstähle / A
e
W
t
kz
er
ta medios de la aleación / A
c
ciaio da ut
ciers à outils alliés / A
ensili di media
dur
ezza /
er
c
amien
r
os her
el L
eg
ier
itt
/ M
MEDIUM ALLOY TOOL STEELS / Mittel Legierte Werkzeugstähle / Aceros herramienta medios de la aleación / Aciers à outils alliés / Acciaio da utensili di media durezza / 中碳合金钢
合金钢
中碳
8620 250 - 400 .0017" - .0035" .0025" - .0043" .0030" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115"
4140, D2, S7 250 - 350 .0015" - .0028" .0018" - .0035" .0025" - .0043" .0030" - .0055" .0035" - .0065" .0042" - .0080" .0052" - .0095"
c
cier du car
bonio /
off
stahl / A
bone / A
ciaio al car
/ Kohlenst
er
o de car
bón / A
c
碳钢
P CARBON STEELS / Kohlenstoffstahl / Acero de carbón / Acier du carbone / Acciaio al carbonio / 碳钢
1000 Series, A36, 12L14 300 - 500 .0020" - .0042" .0027" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115" .0080" - .0143"
egossenes S
on
tahl / A
/ G
ciaio fuso /
t
c
es / A
o bastidor v
er
er
tidos / A
cier f
c
CAST STEELS / Gegossenes Stahl / Acero bastidor vertidos / Acier fontes / Acciaio fuso / 铸钢
铸钢
Steel 250 - 350 .0020" - .0042" .0027" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115" .0080" - .0143"
/ G
iale fuso /
iaux f
er
es / M
t
on
t
a
er
er
tidos / M
a
t
er
a
ial bastidor v
ial / M
t
er
t
a
egossenes M
铸造件
CAST MATERIAL / Gegossenes Material / Material bastidor vertidos / Materiaux fontes / Materiale fuso / 铸造件
K Ductile Iron 250 - 350 .0020" - .0042" .0027" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115" .0080" - .0143"
Gray Iron 250 - 350 .0020" - .0042" .0027" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115" .0080" - .0143"
etal no f
oso /
ich
er
r
r
t
eux / metallo non f
er
eisenmetalle / M
/ N
r
oso / métal non f
er
有色金属
NON-FERROUS / Nichteisenmetalle / Metal no ferroso / métal non ferreux / metallo non ferroso / 有色金属
N Aluminum (6061-T6) 300 - 500 .0020" - .0042" .0027" - .0052" .0035" - .0065" .0043" - .0078" .0052" - .0095" .0065" - .0115" .0080" - .0143"
Copper, Brass 175 - 350 .0017" - .0042" .0025" - .0052" .0030" - .0065" .0035" - .0078" .0043" - .0095" .0052" - .0115" .0065" - .0143"
ap
ae
ap = full flute length
ae = 2%
NOTE - ABOVE ARE STARTING PARAMETERS ONLY. HIGHER RESULTS MAY BE ACHIEVED WITH OPTIMUM CONDITIONS.
