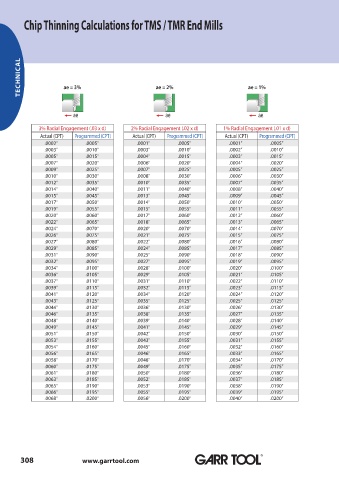

Chip Thinning Calculations for TMS / TMR End Mills

TECHNICAL ae = 3% ae = 2% ae = 1%

ae ae ae

3% Radial Engagement (.03 x d) 2% Radial Engagement (.02 x d) 1% Radial Engagement (.01 x d)
Actual (CPT) Programmed (CPT) Actual (CPT) Programmed (CPT) Actual (CPT) Programmed (CPT)
.0002" .0005" .0001" .0005" .0001" .0005"
.0003" .0010" .0003" .0010" .0002" .0010"
.0005" .0015" .0004" .0015" .0003" .0015"
.0007" .0020" .0006" .0020" .0004" .0020"
.0009" .0025" .0007" .0025" .0005" .0025"
.0010" .0030" .0008" .0030" .0006" .0030"
.0012" .0035" .0010" .0035" .0007" .0035"
.0014" .0040" .0011" .0040" .0008" .0040"
.0015" .0045" .0013" .0045" .0009" .0045"
.0017" .0050" .0014" .0050" .0010" .0050"
.0019" .0055" .0015" .0055" .0011" .0055"
.0020" .0060" .0017" .0060" .0012" .0060"
.0022" .0065" .0018" .0065" .0013" .0065"
.0024" .0070" .0020" .0070" .0014" .0070"
.0026" .0075" .0021" .0075" .0015" .0075"
.0027" .0080" .0022" .0080" .0016" .0080"
.0029" .0085" .0024" .0085" .0017" .0085"
.0031" .0090" .0025" .0090" .0018" .0090"
.0032" .0095" .0027" .0095" .0019" .0095"
.0034" .0100" .0028" .0100" .0020" .0100"
.0036" .0105" .0029" .0105" .0021" .0105"
.0037" .0110" .0031" .0110" .0022" .0110"
.0039" .0115" .0032" .0115" .0023" .0115"
.0041" .0120" .0034" .0120" .0024" .0120"
.0043" .0125" .0035" .0125" .0025" .0125"
.0044" .0130" .0036" .0130" .0026" .0130"
.0046" .0135" .0038" .0135" .0027" .0135"
.0048" .0140" .0039" .0140" .0028" .0140"
.0049" .0145" .0041" .0145" .0029" .0145"
.0051" .0150" .0042" .0150" .0030" .0150"
.0053" .0155" .0043" .0155" .0031" .0155"
.0054" .0160" .0045" .0160" .0032" .0160"
.0056" .0165" .0046" .0165" .0033" .0165"
.0058" .0170" .0048" .0170" .0034" .0170"
.0060" .0175" .0049" .0175" .0035" .0175"
.0061" .0180" .0050" .0180" .0036" .0180"
.0063" .0185" .0052" .0185" .0037" .0185"
.0065" .0190" .0053" .0190" .0038" .0190"
.0066" .0195" .0055" .0195" .0039" .0195"
.0068" .0200" .0056" .0200" .0040" .0200"
