MXD 52

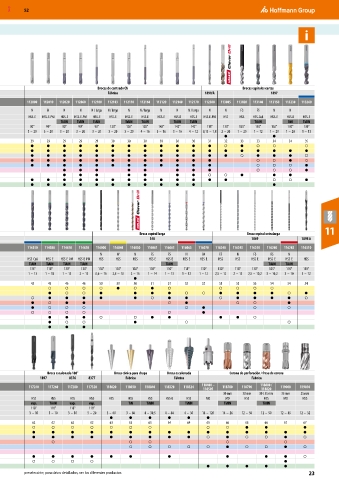

Vista general – programa de brocas espirales de MDI
i

Denominación Brocas de centrado Brocas de centrado CN Brocas espirales cortas
DIN > 333 Fábrica 333 332/2 Fábrica 1899/A 1897
111000 /
Número de artículo 111050 111100 111105 111200 111205 111250 111290 111300 111350 111450 111455 111520 11 1310 11 1313 112000 112010 112020 112060 112100 112103 112110 112160 112120 112140 112170 112300 113005 113020 113140 113150 113230 113260
111005
A / A
Tipo de broca A A A A A (sup.) A (sup.) izquierda A / larga A / larga R R (sup.) R (sup.) B A (superficie) N N N N N / larga N / larga N N / larga N N N / larga N N FS FS N N
Material de corte HSS HSS-E HSS-E HSS-PM HSS-E HSS-E HSS HSS-E HSS-E HSS HSS-E HSS-E HSS HSS-E HSS-E HSS-E HSS-E-PM HSS-E HSS-E-PM HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E HSS-E-PM HSS HSS HSS-Co8 HSS-E HSS-E HSS-E
Recubrimiento TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiN TiAlN
Ángulo de punta / centrado 60° 60° 60° 60° 60° 60° 60° 60° 60° 60° 60° 60° 120° / 60° 60° 60° 90° 90° 90° 90° 90° 120° 120° 120° 142° 142° 142° 118° 130° 135° 130° 130° 130° 130°
Rango de tamaños (⌀ mm) 0,5 – 10 0,5 – 6,3 1 – 4 0,5 – 4 1,6 – 6,3 1,6 – 6,3 0,5 – 8 0,75 – 3 1 – 5 0,5 – 6,3 1,6 – 6,3 1,6 – 6,3 1 – 5 M3 – M12 M4 – M24 3 – 20 3 – 20 3 – 20 3 – 20 3 – 20 3 – 20 3 – 20 4 – 16 3 – 16 3 – 16 4 – 12 0,15 – 1,8 2 – 20 1 – 20 1 – 12 1 – 20 1 – 20 1 – 13
para máquinas guiadas a mano ● ●
Página ISO 513 25 25 25 25 26 26 26 26 26 27 28 28 28 27 27 29 29 29 29 29 30 30 30 30 30 30 31 32 33 33 34 34 35
Aluminio, plásticos N ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ○ ● ○ ○ ○
Acero < 500 N/mm² P ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
Acero < 900 N/mm² P ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ○ ● ● ● ○
Acero < 1400 N/mm² P ○ ● ● ● ● ● ○ ● ● ○ ● ● ○ ● ● ● ● ● ● ● ● ● ● ● ● ● ● ○ ○ ● ○
INOX M ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ○ ○ ○ ●
Ti S ● ● ● ● ● ● ● ● ● ● ● ● ○ ○ ○ ●
GG (G) K ○ ● ● ○ ● ○ ○ ○ ● ● ● ● ● ● ● ● ● ● ○ ○ ● ● ●
CuZn N ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ○ ○ ●
UNI ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●

11
Denominación Brocas espirales cortas Broca espiral Broca espiral larga Broca espiral extralarga
DIN > 1897 338 340 1869 1898 A
Número de artículo 113265 113280 113341 / 113001 114001 114000 114020 114030 114150 114200 114360 114400 114405 114450 114470 114500 114550 114580 114610 114620 116000 116040 116050 116061 116063 116065 116070 116240 116245 116250 116280 116285 116310
113421
Tipo de broca N N N N N N W N N N FS H N W N FS FS N VA FS N FS FS N
Material de corte HSS-E HSS-E-PM HSS HSS-E HSS-E HSS HSS HSS HSS HSS HSS HSS-E HSS-E HSS-E HSS-E HSS-E HSS-Co8 HSS-E HSS-E-PM HSS-E-PM HSS HSS HSS HSS-E HSS-E HSS-E HSS-E HSS HSS HSS-E HSS-E HSS-E HSS
Recubrimiento TiAIN TiAlN TiN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN TiAlN
Ángulo de punta 118° 130° 135° 130° 130° 118° 118° 130° 118° 130° 118° 130° 135° 130° 135° 130° 135° 118° 130° 130° 118° 130° 130° 130° 130° 118° 130° 130° 118° 130° 135° 118° 118°
Rango de tamaños (⌀ mm) 1 – 13 1 – 12 2,5 – 9,6 1 – 20 1 – 20 1 – 13 1 – 20 1 – 20 0,2 – 20 0,9 – 13 1 – 16 1 – 16 1 – 13 1 – 13 2 – 12 1 – 13 1 – 13 1 – 13 1 – 13 2 – 13 0,6 – 16 2,5 – 10 2 – 16 1 – 14 1 – 13 1 – 12 1 – 12 2,5 – 12 2 – 12 2,5 – 10,2 3 – 10,2 3 – 10 3 – 12
para máquinas guiadas a mano ● ● ● ● ● ●
Página ISO 513 35 35 36 37 38 39 39 40 40 42 42 43 43 44 44 45 45 45 46 46 50 50 50 51 51 52 52 53 53 53 54 54 54
Aluminio, plásticos N ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ○ ● ○ ○ ○ ○ ● ○ ● ○ ○ ○ ○ ○
Acero < 500 N/mm² P ● ○ ● ● ● ● ● ● ● ● ○ ● ● ● ○ ○ ● ● ● ● ○ ○ ● ● ● ● ○ ●
Acero < 900 N/mm² P ● ● ○ ● ● ● ● ● ● ● ● ● ○ ○ ○ ● ● ● ● ● ○ ● ● ○ ● ● ● ● ○
Acero < 1400 N/mm² P ○ ● ● ● ○ ○ ● ● ○ ● ○ ● ● ○ ● ○ ○ ●
INOX M ○ ○ ○ ○ ○ ○ ○ ● ● ● ○ ○ ○ ○ ● ○ ○
Ti S ○ ○ ○ ● ● ○ ○ ○ ○ ○ ●
GG (G) K ● ● ○ ○ ○ ○ ○ ● ● ● ● ● ● ● ○ ○ ● ● ● ● ○
CuZn N ● ○ ○ ○ ● ● ○ ○ ● ○ ○ ● ○ ○
UNI ● ● ● ● ● ● ●

Denominación Broca espiral con vástago Cono Morse Broca escalonada 90° Broca escalonada 180° Broca cónica para chapa Broca escalonada Corona de perforación / fresa de corona
DIN > 345 Fábrica 343 341 1870 1897 8378 1897 Fábrica 8374 1897 8376 8377 Fábrica Fábrica Fábrica
118400 – 118800 /
Número de artículo 116340 116320 116360 116380 116620 116700 116720 116760 117020 117040 117060 117120 117140 117160 117180 117240 117260 117280 117320 118020 118030 118040 118320 118324 118505 118780 118790 118820 119000 119010
Tipo de broca N N VA H N N FS N 30 mm 30 mm 30 / 55 mm 35 mm 25 mm
Material de corte HSS HSS HSS-E HSS-Co8 HSS HSS HSS HSS HSS HSS HSS HSS HSS HSS-E HSS HSS HSS HSS HSS HSS HSS HSS HSS-E HSS MD MD HSS HSS MD HSS
Recubrimiento vap. TiAlN vap. vap. TiAlN vap. vap. TiAlN vap. vap. TiN TiAlN TiAlN TiAlN TiAlN
Ángulo de punta 118° 118° 135° 130° 120° 118° 130° 118° 118° 118° 118° 118° 118° 118° 118° 118° 118° 118° 118°
Rango de tamaños (⌀ mm) 5 – 70 13 – 70 10 – 35 8,5 – 30 7,8 – 50 10 – 50 10 – 30 8 – 30 3 – 12 3 – 12 3 – 12 3 – 10 3 – 10 4 – 10 3 – 10 3 – 10 3 – 10 3 – 10 5 – 20 3 – 60 3 – 60 4 – 30,5 4 – 60 4 – 30 16 – 120 14 – 26 12 – 50 12 – 50 12 – 65 12 – 32
para máquinas guiadas a mano ● ● ● ● ● ●
Página ISO 513 55 55 56 56 57 58 58 59 59 59 60 60 60 61 61 62 62 62 62 63 63 63 64 64 65 66 66 66 67 67
Aluminio, plásticos N ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ● ●
Acero < 500 N/mm² P ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●
Acero < 900 N/mm² P ● ○ ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ○ ● ○ ○ ● ○
Acero < 1400 N/mm² P ○ ● ○ ○ ○ ○ ○ ○ ○ ○
INOX M ● ○ ○ ○ ○ ○ ○ ● ○ ○ ● ○
Ti S ● ●
GG (G) K ● ○ ● ○ ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ○
CuZn N ● ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ●
UNI ● ● ● ● ●
preselección; para datos detallados, ver los diferentes productos 23
