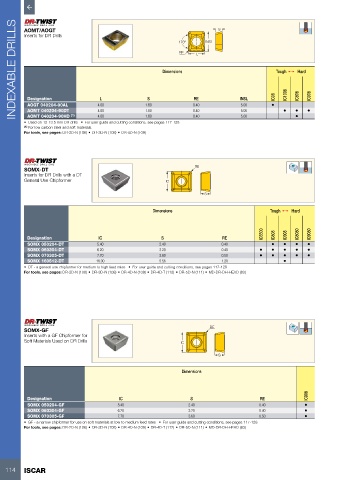

Page 116 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS AOMT/AOGT Dimensions L INSL S Tough 1 Hard IC908

Inserts for DR Drills
178°
RE

IC1008
IC808
RE
L
S
Designation
AOGT 040204-90AL
1.60
5.00
4.00
AOMT 040204-90DT
5.00
0.40
4.00
1.60
•
(1)
5.00
1.60
4.00
0.40
AOMT 040204-90HD
• Used on 12-13.5 mm DR drills • For user guide and cutting conditions, see pages 117-128 0.40 INSL • IC08 • • •
(1) For low carbon steel and soft materials.
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109)

RE
SOMX-DT
Inserts for DR Drills with a DT
General Use Chipformer IC
S
Dimensions Tough 1 Hard
IC5500 IC808 IC908 IC8080 IC9080
Designation IC S RE
SOMX 050204-DT 5.40 2.40 0.40 • • • •
SOMX 060304-DT 6.20 3.20 0.40 • • • • •
SOMX 070305-DT 7.70 3.60 0.50 • • • • •
SOMX 160512-DT 16.00 5.56 1.20 •
• DT - a general use chipformer for medium to high feed rates • For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)

RE
SOMX-GF
Inserts with a GF Chipformer for
Soft Materials Used on DR Drills IC

S

Dimensions

IC908
Designation IC S RE
SOMX 050204-GF 5.40 2.40 0.40 •
SOMX 060304-GF 6.20 3.20 0.40 •
SOMX 070305-GF 7.70 3.60 0.50 •
• GF - a narrow chipformer for use on soft materials at low to medium feed rates • For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)

114 ISCAR
