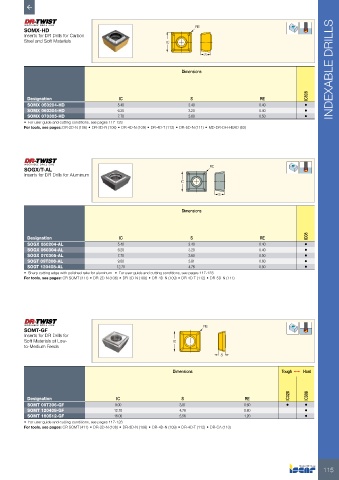

Page 117 - ISCAR(HOLE_MAKING_CATALOG_65)

RE

SOMX-HD
Inserts for DR Drills for Carbon
Steel and Soft Materials IC

S

Dimensions INDEXABLE DRILLS

IC808
Designation IC S RE
SOMX 050204-HD 5.40 2.40 0.40 •
SOMX 060304-HD 6.20 3.20 0.40 •
SOMX 070305-HD 7.70 3.60 0.50 •
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111) • MD-DR-DH-HEAD (83)

RE
SOGX/T-AL
Inserts for DR Drills for Aluminum
IC

S

Dimensions

Designation IC S RE IC08
SOGX 050204-AL 5.40 2.40 0.40 •
SOGX 060304-AL 6.20 3.20 0.40 •
SOGX 070305-AL 7.70 3.60 0.50 •
SOGT 09T306-AL 9.00 3.81 0.60 •
SOGT 120408-AL 12.70 4.76 0.80 •
• Sharp cutting edge with polished rake for aluminum • For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-5D-N (111)

RE
SOMT-GF
Inserts for DR Drills for
Soft Materials at Low- IC
to-Medium Feeds
S

Dimensions Tough 1 Hard

IC328 IC908
Designation IC S RE
SOMT 09T306-GF 9.00 3.81 0.60 • •
SOMT 120408-GF 12.70 4.76 0.80 •
SOMT 160512-GF 16.00 5.56 1.20 •
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)

115
