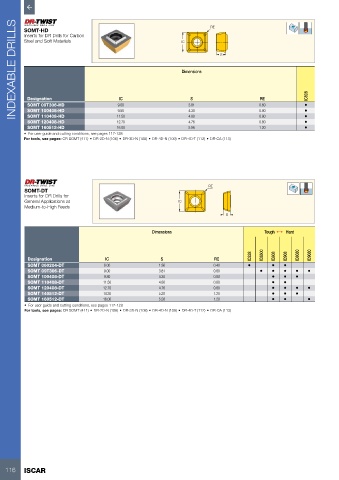

Page 118 - ISCAR(HOLE_MAKING_CATALOG_65)

INDEXABLE DRILLS SOMT-HD IC RE S

Inserts for DR Drills for Carbon
Steel and Soft Materials

Dimensions

IC
Designation
RE
S
SOMT 09T306-HD
9.00
•
SOMT 100408-HD
4.30
0.80
9.80
•
4.80
0.80
SOMT 110408-HD
•
4.76
12.70
0.80
SOMT 120408-HD 11.50 3.81 0.60 • IC808
SOMT 160512-HD 16.00 5.56 1.20 •
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)

RE

SOMT-DT
Inserts for DR Drills for
General Applications at IC
Medium-to-High Feeds
S
Dimensions Tough 1 Hard

IC328 IC5500 IC808 IC908 IC8080 IC9080
Designation IC S RE
SOMT 060204-DT 6.00 1.96 0.40 • • •
SOMT 09T306-DT 9.00 3.81 0.60 • • • • •
SOMT 100408-DT 9.80 4.30 0.80 • • •
SOMT 110408-DT 11.50 4.80 0.80 • •
SOMT 120408-DT 12.70 4.76 0.80 • • • •
SOMT 140512-DT 14.30 5.20 1.20 • • •
SOMT 160512-DT 16.00 5.56 1.20 • • •
• For user guide and cutting conditions, see pages 117-128
For tools, see pages: CR SOMT (411) • DR-2D-N (106) • DR-3D-N (108) • DR-4D-N (109) • DR-4D-T (112) • DR-CA (113)

116 ISCAR
