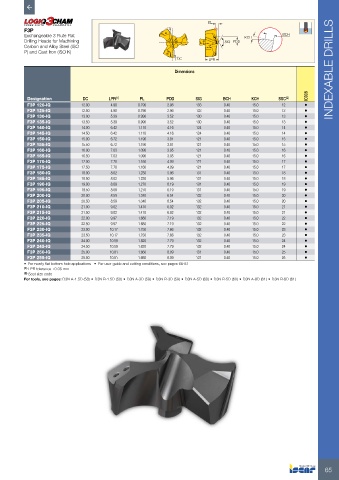

P. 67

PL

          F3P
          Exchangeable 3 Flute Flat                                                    KCH          BCH
          Drilling Heads for Machining                                          SIG  PDD
          Carbon and Alloy Steel (ISO
          P) and Cast Iron (ISO K)
                                                               DC         LPR

                                                              Dimensions                                              INDEXABLE DRILLS



                                                                                                             IC908
           Designation        DC       LPR (1)    PL        PDD       SIG      BCH       KCH       SSC (2)
           F3P 120-IQ         12.00     4.90      0.790     2.96      133       0.40      15.0      12      •
           F3P 125-IQ         12.50     4.90      0.790     2.96      133       0.40      15.0      12      •
           F3P 130-IQ         13.00     5.39      0.990     3.52      130       0.40      15.0      13      •
           F3P 135-IQ         13.50     5.39      0.990     3.52      130       0.40      15.0      13      •
           F3P 140-IQ         14.00     6.42      1.110     4.16      124       0.40      15.0      14      •
           F3P 145-IQ         14.50     6.42      1.110     4.16      124       0.40      15.0      14      •
           F3P 150-IQ         15.00     6.72      1.190     3.81      121       0.40      15.0      15      •
           F3P 155-IQ         15.50     6.72      1.190     3.81      121       0.40      15.0      15      •
           F3P 160-IQ         16.00     7.03      1.090     3.95      121       0.40      15.0      16      •
           F3P 165-IQ         16.50     7.03      1.090     3.95      121       0.40      15.0      16      •
           F3P 170-IQ         17.00     7.70      1.160     4.09      121       0.40      15.0      17      •
           F3P 175-IQ         17.50     7.70      1.160     4.09      121       0.40      15.0      17      •
           F3P 180-IQ         18.00     8.02      1.230     5.86      131       0.40      15.0      18      •
           F3P 185-IQ         18.50     8.02      1.230     5.86      131       0.40      15.0      18      •
           F3P 190-IQ         19.00     8.09      1.270     6.19      131       0.40      15.0      19      •
           F3P 195-IQ         19.50     8.09      1.270     6.19      131       0.40      15.0      19      •
           F3P 200-IQ         20.00     8.59      1.340     6.54      132       0.40      15.0      20      •
           F3P 205-IQ         20.50     8.59      1.340     6.54      132       0.40      15.0      20      •
           F3P 210-IQ         21.00     9.02      1.410     6.92      132       0.40      15.0      21      •
           F3P 215-IQ         21.50     9.02      1.410     6.92      132       0.40      15.0      21      •
           F3P 220-IQ         22.00     9.97      1.680     7.19      132       0.40      15.0      22      •
           F3P 225-IQ         22.50     9.97      1.680     7.19      132       0.40      15.0      22      •
           F3P 230-IQ         23.00     10.17     1.750     7.66      132       0.40      15.0      23      •
           F3P 235-IQ         23.50     10.17     1.750     7.66      132       0.40      15.0      23      •
           F3P 240-IQ         24.00     10.59     1.820     7.79      132       0.40      15.0      24      •
           F3P 245-IQ         24.50     10.59     1.820     7.79      132       0.40      15.0      24      •
           F3P 250-IQ         25.00     10.81     1.660     8.09      131       0.40      15.0      25      •
           F3P 255-IQ         25.50     10.81     1.660     8.09      131       0.40      15.0      25      •
          •  For nearly flat bottom hole applications   •  For user guide and cutting conditions, see pages 68-81
          (1)  LPR tolerance ±0.05 mm
          (2)  Seat size code
          For tools, see pages: D3N A-1.5D (58) • D3N R-1.5D (58) • D3N A-3D (59) • D3N R-3D (59) • D3N A-5D (60) • D3N R-5D (60) • D3N A-8D (61) • D3N R-8D (61)
